1.Support MPLS features (L2/L3 VPN) to build a unified and converged network platform.
2.MLAG which can build an Active-Active system to improve the reliability of the network links from single board grade to device grade.
3.Implementing Vxlan and BGP protocols to build EVPN applications for data centers scenario.
4.Switch-to-switch encryption using MACsec (Media Access Control Security) AES-CMAC.

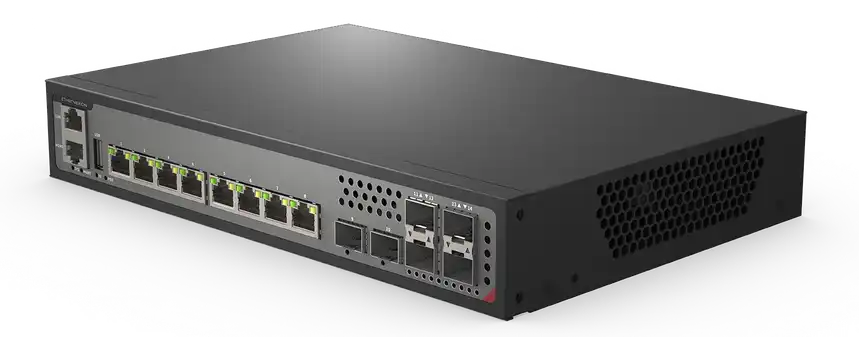

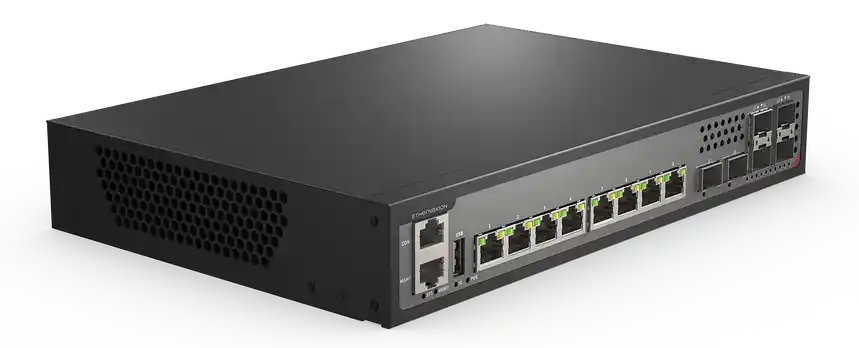

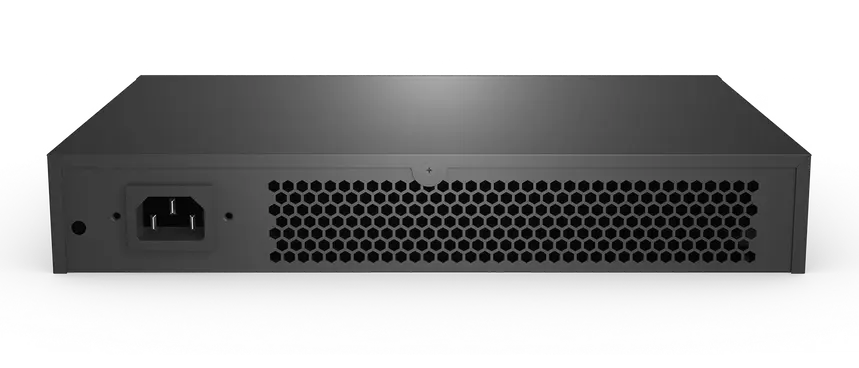

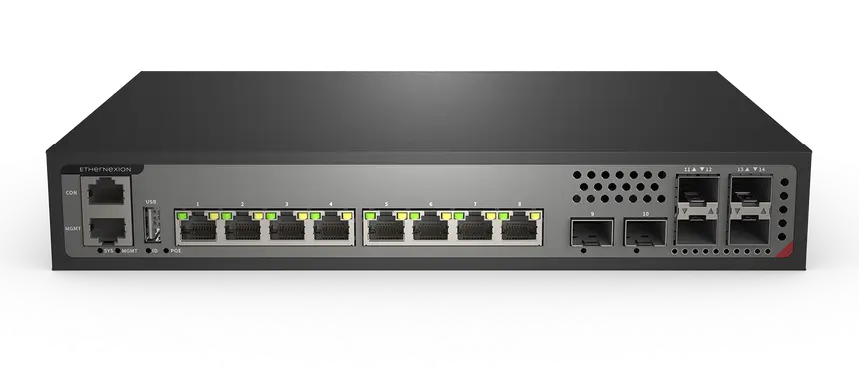

S37-8G-P-2X-SI-L3
5 models in this series — select one to view its specs and pricing.
Physical interfaces, power, cooling, and mechanical details for this SKU.
Operating system, protocol stack, and management capabilities for this SKU.
No downloads listed for this product.
Specifications that differ between models in this series.
| Spec | S3708GP-2X-SI, 8x1GBase-T(PoE+30W),2x10GSFP+, Support, L3 Management Switch | S3748G-6X-EI, 48x1GBase-T,6x10GSFP+, L3 Management Switch | S3748G-6X-SI, 48x1GBase-T,6x10GSFP+, L3 Management Switch | S3748GP-6X-EI, 48x1GBase-T(PoE++90W),6x10GSFP+, Support, L3 Management PoE Switch | S3748GP-6X-SI, 48x1GBase-T(1-4口PoE++ 90W,5-48口PoE+ 30W),6x10GSFP+, Support, L3 Management PoE Switch |
|---|---|---|---|---|---|
| Ethernet Ports | 8 x 1G Base-T (PoE+,per port 30W) 2 x 10G SFP+ | 48 x 1G Base-T 6x 10G SFP+ | 48 x 1G Base-T 6x 10G SFP+ | 48 x 1G Base-T(PoE++,per port 90W) 6x 10G SFP+ | 48 x 1G Base-T (1-4口PoE++ 90W,5-48口PoE+ 30W) 6x 10G SFP+ |
| PSU 1/PSU 2 | 2*150W,24W Fixeded Power Supply | 2*75W Hot-swappable Power supply | 1*60W Fixeded Power Supply | 2*900W or 1200 CRPS Hot-swappable Power supply | 1*780W Fixeded Power Supply |
| Cooling | 1*Fixed Fan(front-to-back airflow) | 3*Plugable Fans Modules(front-to-back airflow) | 3*Fixed Fans(front-to-back airflow) | 3*Plugable Fans Modules (front-to-back airflow) | 4*Fixed Fans (front-to-back airflow) |
| Dimensions(W*H*D) | 442*44*410 | 442*44*410 | 442*44*321 | 442*44*410 | 442*44*321 |
| Switch capacity (bidirectional) | 56 Gbps | 216 Gbps | 216 Gbps | 216 Gbps | 216 Gbps |
| Layer 2/Layer 3 Throughput（MPPS) | 151 MPPS | 178 MPPS | 178 MPPS | 178 MPPS | 178 MPPS |
We will route this inquiry with product context to our sales team.
5.Precision Timing Protocol.
6.Rich L2/L3 features like IPv6,OSPF,BGP,PIM,etc.
7.supporting permanent PoE function.
6 differing spec rows across 5 models.
