Highlights
1.MPLS (label-switching-based) integrates IP flexibility and connection-oriented reliability,enabling isolated multi-service bearing,precise traffic scheduling to meet multi-scenario efficient needs.
2.MLAG which can build an Active-Active system to improve the reliability of the network links from single board grade to device grade.
3.Implementing Vxlan and BGP protocols to build EVPN applications for data centers scenario.
4.Switch-to-switch encryption using MACsec (Media Access Control Security) AES-CMAC.

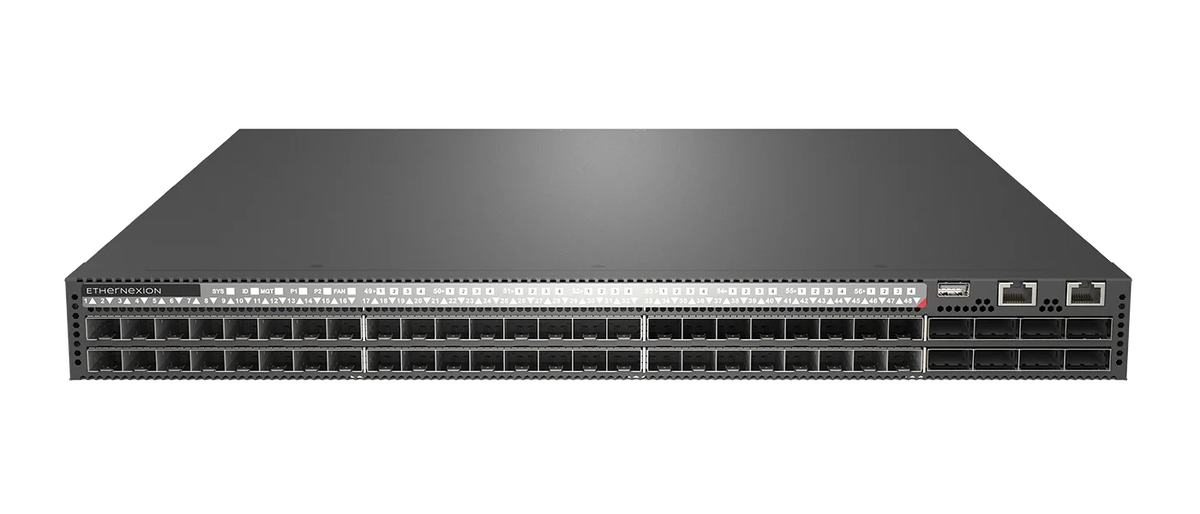

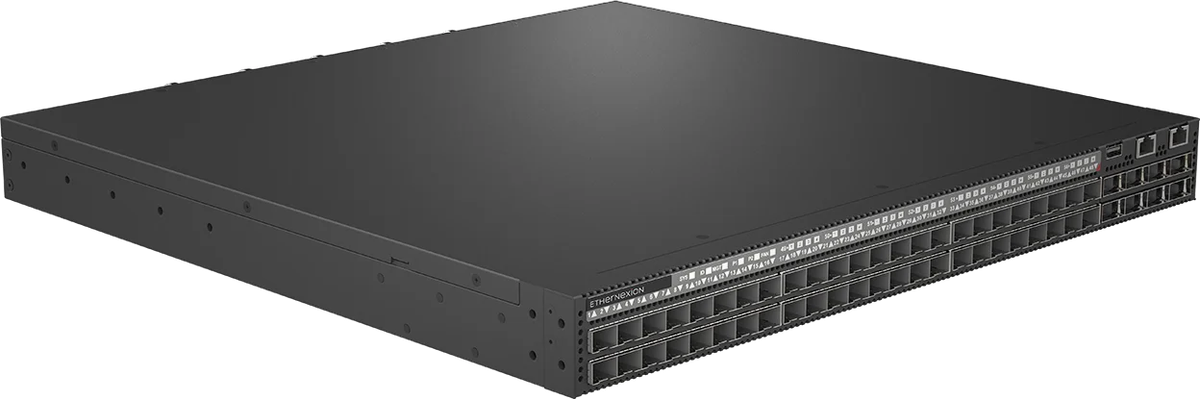

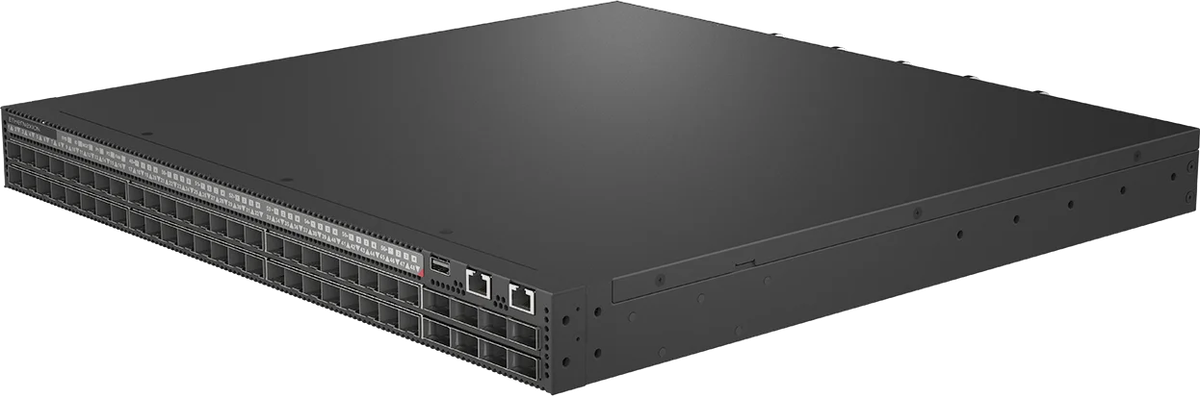

S8248N-8C, 48x10G/25GSFP28,8x100GQSFP28, 154W, L3 Management Fiber Switch
Request a quote
We will route this inquiry with product context to our sales team.
5.Precision Timing Protocol.
6.Rich features for Datacenter scenario.
- Weight(kg) (Net/Gross):
- 9kg/12.5kg
- Environmental ranges
- 0ºC to 45ºC
- Switch capacity (bidirectional)
- 4 Tbps
- Layer 2/Layer 3 Throughput（MPPS)
- 2.98 BPPS
- Jumbo frame
- 9600
- MAC address
- 122880
- IPv4/IPv6 Routing entry
- 61K/4K
- VLAN
- 4094
- Ethernet Ports
- 48 x 10G/25G SFP28
8 x 100G QSFP28

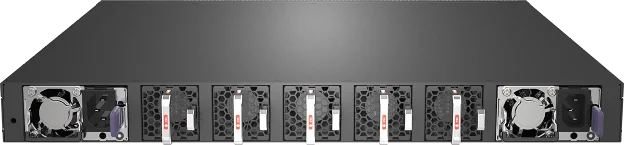

- Cooling
- 5*Plugable Fans Modules
(front-to-back airflow)
- Management
- Console: RJ45 RS232
Ethernet: 1G Port
Storage: USB
Supports MPLS
Supports RoCEv2 (RDMA version 2 based on converged Ethernet)Supports PFC/ECNSupports PFC watchdog,PFC deadlock preventionSupports WRED,ECN,Easy ECNSupports Generalized Routing Encapsulation Protocol (GRE)Supports DLBSupports Buffer TelemetrySupports Congestion TelemetrySupports MPLS hardware line-speed forwardingSupports MPLS OAM link detectioLayer 3 Routing Features- Support IS-IS
- Support routing interfaces
- Support BGP4/BGP4+
- Support load balancing routes (ECMP)
- Support PBR (policy-based routing)
- Support virtual router redundancy protocol (VRRP)
- Support DHCP (listening/relaying for IPv4 and IPv6)
- Support IGMP v2/v3
- Support PIM SM/SSM
- Support BFD
Support dual-stack for IPv4/IPv6
Support MPLS L3VPN for third-layer private networksS8248N-8C, 48 x 10G/25G SFP28, 8 x 100G QSFP28, 154W, L3 Management Fiber Switch | Switches | EtherNexion · EtherNexion
