Highlights
1.Support MPLS features (including L2/L3 VPN),helping enterprises build a unified and integrated network platform.
2.Support MLAG and cross-device link aggregation technology to achieve device-level redundancy and flexible networking with strong reliability.
3.Support VxLAN and BGP protocols to build EVPN applications in data center scenarios.
4.Support MACsec or AES-CMAC encryption functions for switch-to-switch connections.

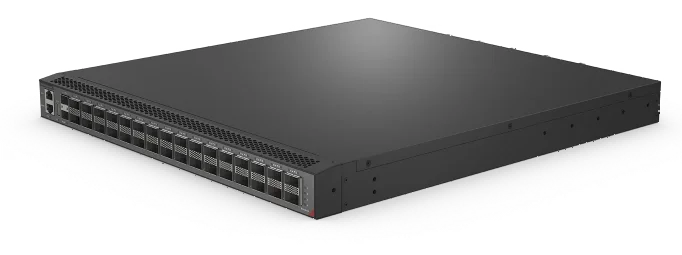

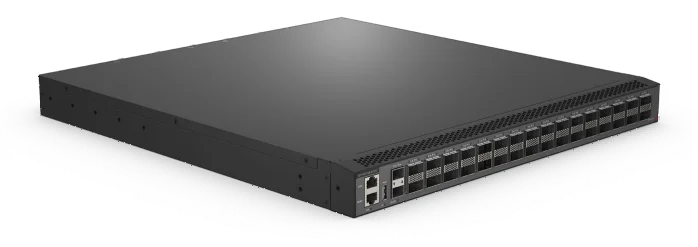

S9232BQ-2X, 32x200GQSFP56,2x10GSFP+, 210W, L3 Data Center Fiber Switch
Request a quote
We will route this inquiry with product context to our sales team.
5.Support Precision Timing protocol.
6.Rich L2/L3 features,such as IPv6,OSPF,BGP,PIM,etc.
- Dimensions(W*H*D)
- 442*44*470
- Weight(kg) (Net/Gross):
- 9.2kg/11kg
- Environmental ranges
- 0ºC to 45ºC
- DRAM
- 2GB
- eMMC
- 8GB
- Switch capacity (bidirectional)
- 12.84 Tbps
- Layer 2/Layer 3 Throughput（MPPS)
- 9.6 BPPS
- Jumbo frame
- 9600
- MAC address
- 245760
- IPv4/IPv6 Routing entry
- 131K/8K

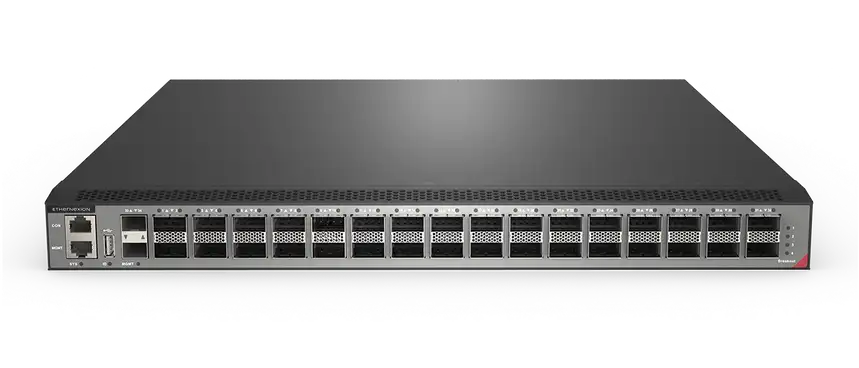

- Ethernet Ports
- 32 x 200G QSFP56
2 x 10G SFP+

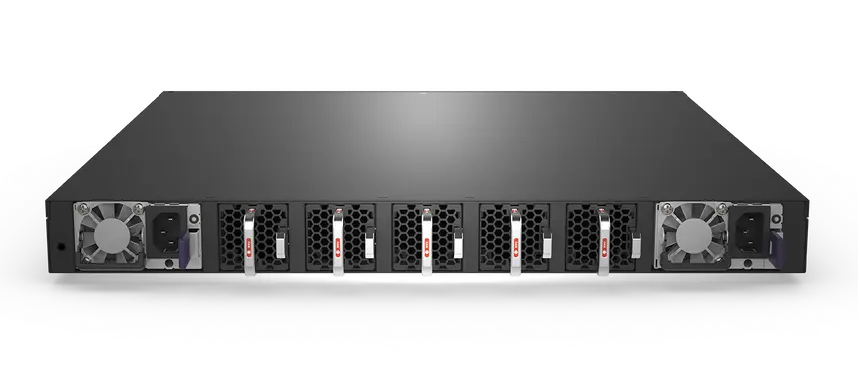

- Cooling
- 6*Plugable Fans Modules
(front-to-back airflow)
- Management
- Console: RJ45 RS232
Ethernet: 1G Port
Support priority Flow control (PFC)
Support explicit congestion notification (ECN)Support PFC watchdogSupport dynamic load balancing (DLB)Support MLAGSupport LLDP (802.1AB link layer discovery protocol)Support VLAN registration (GVRP/MVRP)Support WRED,ECN,Easy ECNSupport hardware line-speed forwarding of MPLSSupport MPLS OAM link detectionLayer 3 Routing Features- Supports OSPFv2,OSPFv3
- Supports BGP4/BGP4+
- Supports Equal-Cost Multi-Path Routing (ECMP)
- Supports PBR (Policy-Based Routing)
- Supports Virtual Router Redundancy Protocol (VRRP)
- Supports DHCP Monitoring/Relaying
- Supports IGMP v1/v2/v3
- Supports PIM SM/SSM
- Supports Bidirectional Forwarding Detection (BFD)
- Supports MPLS L3VPN Three-Layer Private Network
