1.High-density 400G switch,32*400G QSFP112
2.Redundant hot-swappable power and fans ensure continuous stability
3.MPLS (label-switching-based) integrates IP flexibility and connection-oriented reliability,enabling isolated multi-service bearing,precise traffic scheduling,fast fault self-healing,and lower networking costs to meet multi-scenario efficient needs
4.Support VXLAN/EVPN tunnel technology,unlimited data transmission
5.RDMA end-to-end data forwarding,build a lossless network without packet loss
6.Support MLAG,cross-device link aggregation technology
S93-32D-N-Core
Switch to the other model to compare specs and pricing.
Physical interfaces, power, cooling, and mechanical details for this SKU.
Operating system, protocol stack, and management capabilities for this SKU.
No downloads listed for this product.
Specifications that differ between models in this series.

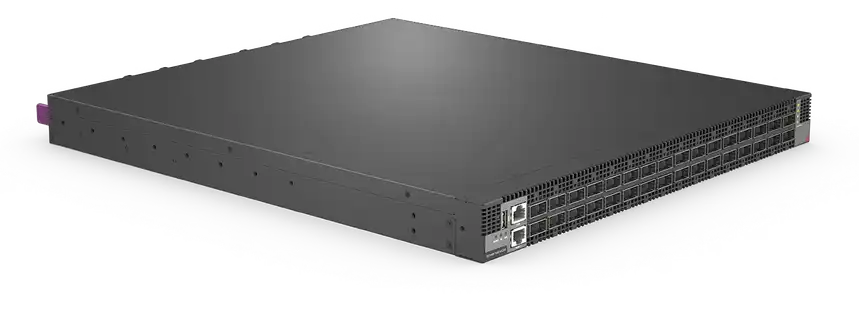

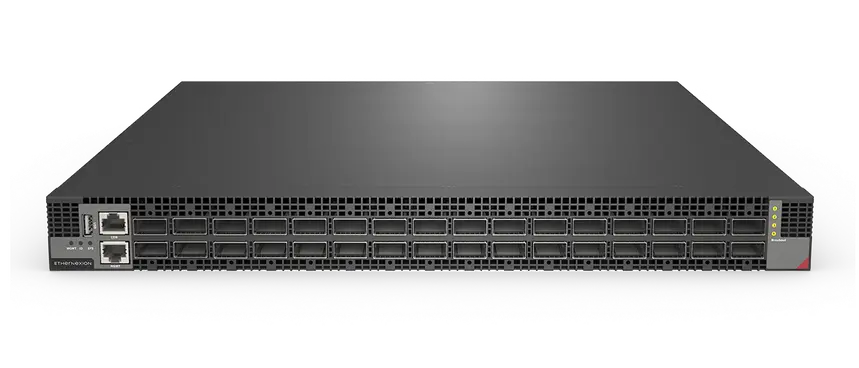

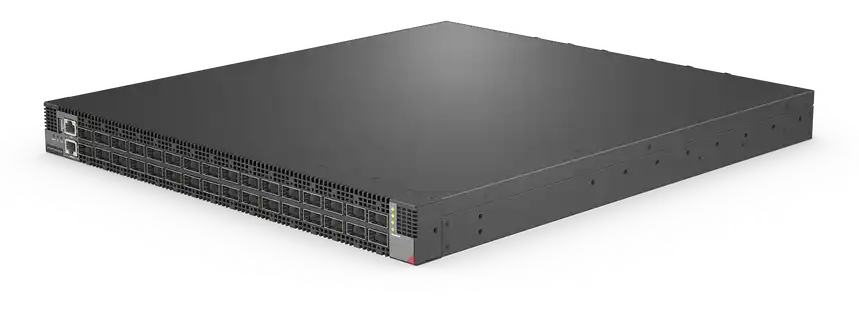

| Spec | S9332DQ, 32x400GQSFP112, 307W, L3 Data Center Fiber Switch | S9364DQ, 64x400GQSFP112, L3 Data Center Fiber Switch |
|---|---|---|
| Ethernet Ports | 32 x 400G QSFP112 | 64 x 400G QSFP112 |
| PSU 1/PSU 2 | 2*CRPS 1300WAC | 2*CRPS 3200WAC |

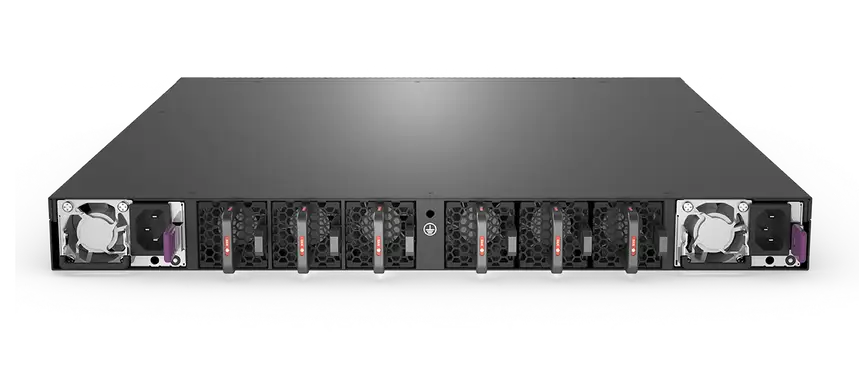

| Cooling | 6*Plugable Fans Modules (front-to-back airflow) | 4*Plugable Fans Modules (front-to-back airflow) |
| encapsulation mode | 1RU | 2RU |
| Dimensions(W*H*D) | 442*44*497 | 442*88*620 |
| Weight(kg) (Net/Gross): | 11.5kg/16kg | 20.34kg/24kg |
| Switch capacity (bidirectional) | 25.6 Tbps | 51.2 Tbps |
| Layer 2/Layer 3 Throughput（MPPS) | 19.1 BPPS | 38.1 BPPS |
8 differing spec rows across 2 models.
