Highlights
1.High-density 800G switch,32*800G OSFP

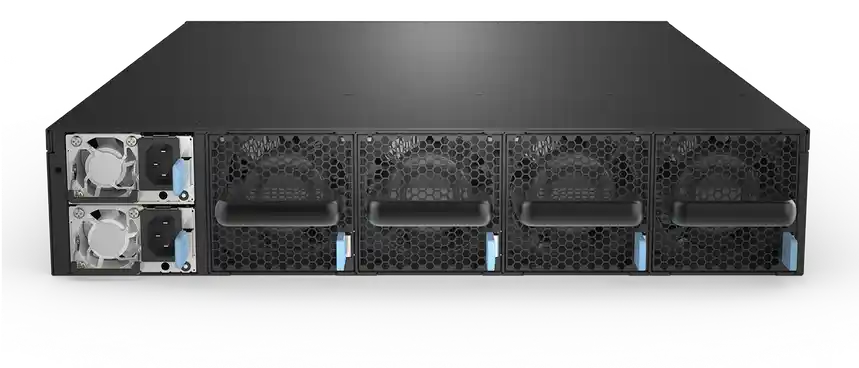

2.Redundant hot-swappable power and fans ensure continuous stability
3.MPLS (label-switching-based) integrates IP flexibility and connection-oriented reliability,enabling isolated multi-service bearing,precise traffic scheduling,fast fault self-healing,and lower networking costs to meet multi-scenario efficient needs
4.Support VXLAN/EVPN tunnel technology,unlimited data transmission
5.RDMA end-to-end data forwarding,build a lossless network without packet loss
6.Support MLAG,cross-device link aggregation technology

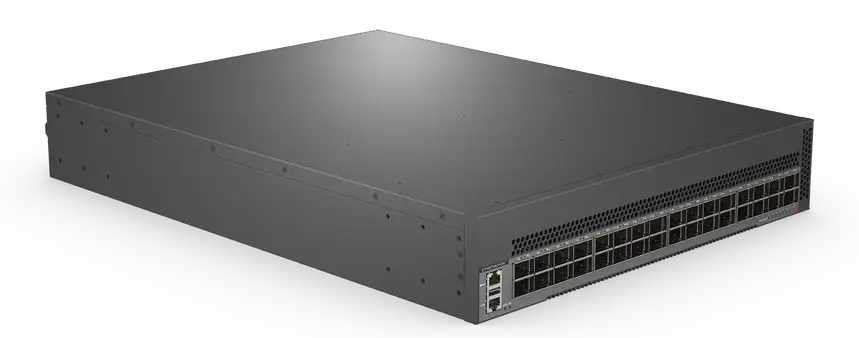

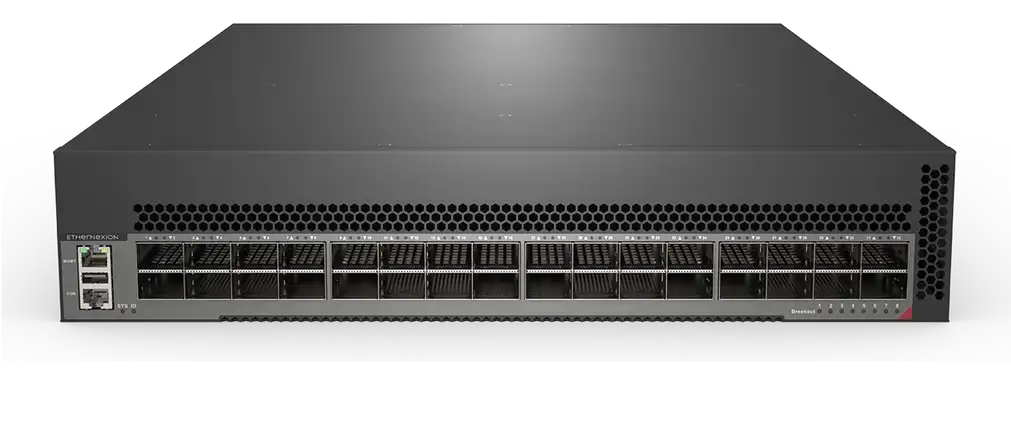

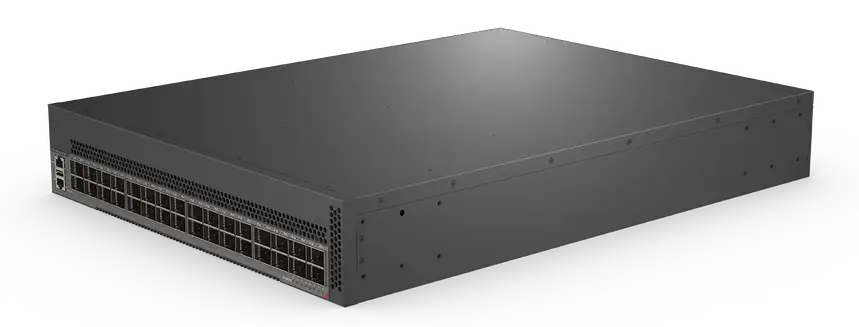

S9432OF, 32x800GOSFP, L3 Data Center Fiber Switch
Request a quote
We will route this inquiry with product context to our sales team.
- encapsulation mode
- 2RU
- Dimensions(W*H*D)
- 442*88*560
- Weight(kg) (Net/Gross):
- 11.8kg/16kg
- Environmental ranges
- 0ºC to 45ºC
- Switch capacity (bidirectional)
- 51.2 Tbps
- Layer 2/Layer 3 Throughput（MPPS)
- 38.1 BPPS
- Jumbo frame
- 9600
- MAC address
- 122880
- IPv4/IPv6 Routing entry
- 61K/4K
- VLAN
- 4094
- Cooling
- 4*Plugable Fans Modules(front-to-back airflow)
- Management
- Console: RJ45 RS232
Ethernet: 1G Port
Support priority flow control (PFC)
Support explicit congestion notification (ECN)Support PFC watchdogSupport dynamic load balancing (DLB)Support MLAGSupport LLDP (802.1AB Link Layer Discovery Protocol)Support VLAN registration (GVRP/MVRP)Support hardware line-speed forwarding of MPLSSupport MPLS OAM link detectionSupport WRED,ECN,Easy ECNLayer 3 Routing Features- Supports OSPFv2,OSPFv3
- Supports IS-IS
- Supports BGP4/BGP4+
- Supports Equal-Cost Multi-Path Routing (ECMP)
- Supports PBR (Policy-Based Routing)
- Supports Virtual Router Redundancy Protocol (VRRP)
- Supports DHCP (IPv4 and IPv6) listening/relaying
- Supports IGMP v2/v3
- Supports PIM SM/SSM
- Supports Bidirectional Forwarding Detection (BFD)
Supports Dual-Stack IPv4/IPv6
Supports MPLS L3VPN Three-Layer Private NetworkS9432OF, 32 x 800G OSFP, 2U, L3 Data Center Fiber Switch | Switches | EtherNexion · EtherNexion
