5.Rich L2/L3 features like IPv6,OSPF,BGP,PIM,etc.

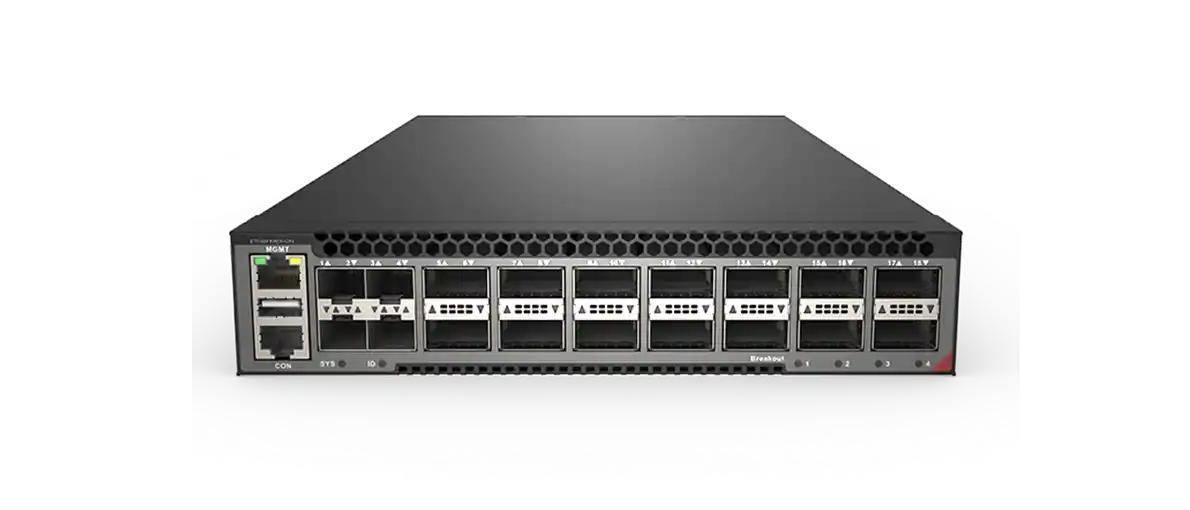

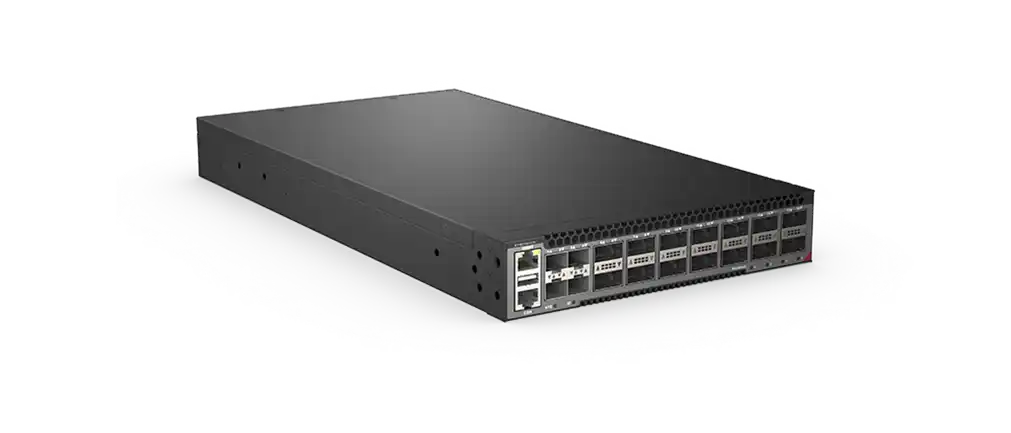

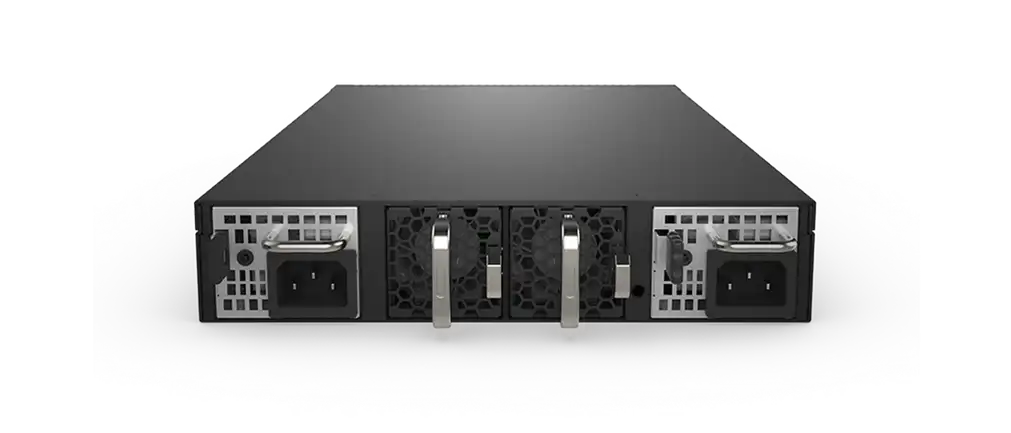

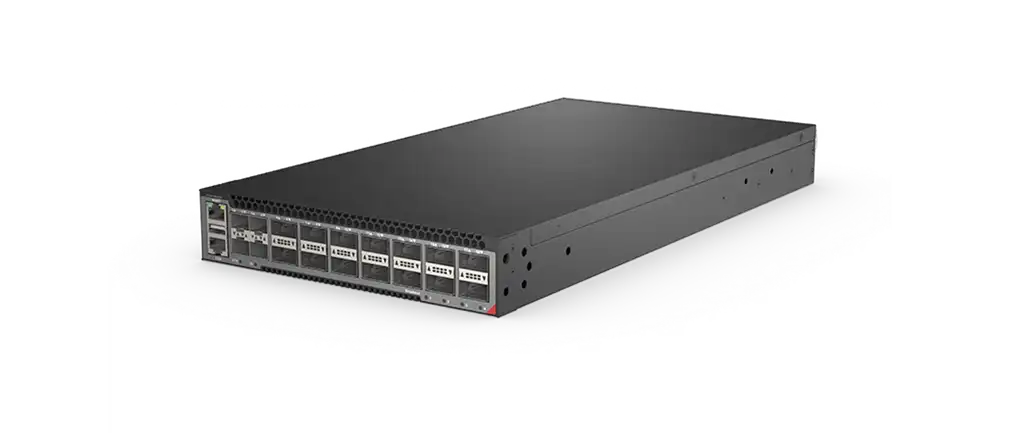

S7314CH-4N-EI, Halfsize Switch with14x100GQSFP28,4*x25G/10GSFP28, 133W, L3 Management Fiber Switch
- Dimensions(W*H*D)
- 215*44*408
- Weight(kg) (Net/Gross):
- 4.5kg/7kg
- Environmental ranges
- 0ºC to 45ºC
- DRAM
- 2GB
- eMMC
- 8GB
- Switch capacity (bidirectional)
- 3 Tbps
- Layer 2/Layer 3 Throughput（MPPS)
- 2.24 BPPS
- Jumbo frame
- 9600
- MAC address
- 122880
- IPv4/IPv6 Routing entry
- 61K/4K
- Ethernet Ports
- 14 x 100G QSFP28
4 x 25G/10G SFP28
- Cooling
- 2*Plugable Fans Modules
(front-to-back airflow)
- Management
- Console: RJ45 to RS232
Ethernet: 1G Port
Storage: USB
Support priority Flow control (PFC)
Support explicit congestion notification (ECN)Support PFC watchdogSupport dynamic load balancing (DLB)Support MLAGSupport LLDP (802.1AB link layer discovery protocol)Support VLAN registration (GVRP/MVRP)Support WRED,ECN,Easy ECNSupport hardware line-speed forwarding of MPLSSupport MPLS OAM link detectionLayer 3 Routing Features- Supports OSPFv2,OSPFv3
- Supports BGP4/BGP4+
- Supports Equal-Cost Multi-Path Routing (ECMP)
- Supports PBR (Policy-Based Routing)
- Supports Virtual Router Redundancy Protocol (VRRP)
- Supports DHCP Monitoring/Relaying
- Supports IGMP v1/v2/v3
- Supports PIM SM/SSM
- Supports Bidirectional Forwarding Detection (BFD)
- Supports MPLS L3VPN Three-Layer Private Network
